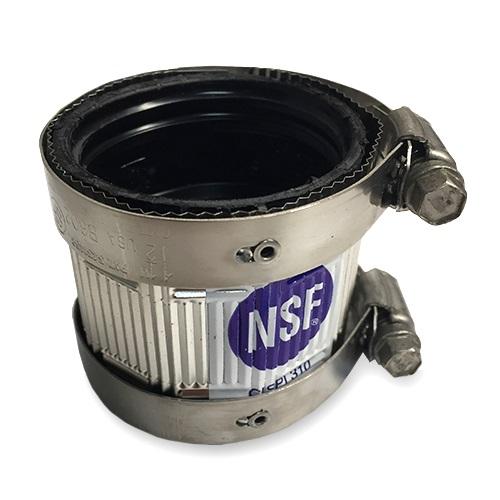

3" STD No-Hub Coupling
Part #3NHCOUP
MFG #6219M8G
End Connection : No Hub
Fitting Size : 3"
Fitting Type : Coupling
Manufacturer Name : Ideal
Material : 301 Stainless Steel
- Coupling Fitting
- Type Straight, Domestic
- Applicable Standard CISPI 310, IAPMO, NSF
- Size A 3"
- Size B 3"
- Thickness 0.007" Shield
- End Connection No Hub x No Hub
- Material 301 Stainless Steel
- Material Specification ASTM C1277
- Gasket Supplied Yes
- Gasket Details ASTM C564 Vulcanized Compound
- Number of Clamps 2
- Installation Torque Rating 60" Lb
- Coupling Width 2-1/8"
- Shield Material 301 Stainless steel
- Band Material 301 Stainless Steel
- Screw Material 305 Stainless Steel
- Eyelet Material 305 Stainless Steel
- This One- Piece Housing Design Eliminates Leak Paths that Can occur in Stacked or Welded Clamps; A Quality Low-Cost Alternative to Applications where Structural Reinforcement is Not a Concern35
