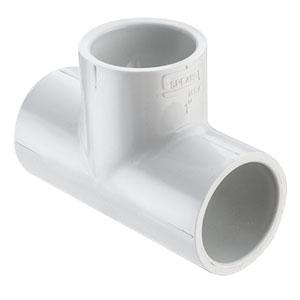

401-005 1/2" PVC Schedule 40 Socket Tee
Part #12PVC40T
MFG #401-005
End Connection : Socket Weld
Fitting Size : 1/2"
Fitting Type : Tee
Manufacturer Name : Spears
Material : PVC Plastic
- Tee Fitting
- Type Straight
- Applicable Standard NSF
- Nominal Size 1/2"
- Schedule 40 S
- Thickness 0.109"
- End Connection Socket x Socket x Socket
- Material PVC
- Material Specification ASTM D1785/D2466
- Process Injection Molded
- Finish White
- Temperature Rating 140 Deg F
- Application Potable Water
- Length 2-1/2"
- Outer Diameter 1-3/32"
- Packaging Quantity 50
- Warranty Lifetime Limited
- MSDS Sheets
Specification Sheet - Designs Combine Year of Proven Experience with Computer Generated Stress Analysis to Yield the Optimum Physical Structure and Performance for Each Fitting; Material Reinforcement is Uniformly Placed in Stress Concentration Areas for Substantially Improved Pressure Handling Capability, Resulting Products are Subjected to Numerous Verification Tests to Assure Obtaining the Very Best PVC Fittings Available; Exceptional Chemical and Corrosion Resistance will Provide Many Year of Maintenance Free Service and Extended System Life; Lower Installation Costs; Smooth Interior Walls Result in Lower Pressure Loss and Higher Volume than Conventional Metal Fittings; Advanced Design Specialty Fittings; Lifetime Limited Warranty
