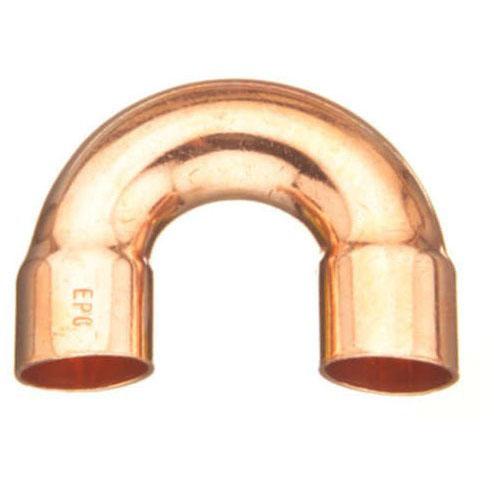

3/8" X 2" CXC 180 Elbow
Part #38C180
MFG #W 06036
End Connection : Sweat
Fitting Size : 2" X 3/8"
Fitting Type : Return Bend
Manufacturer Name : Mueller Streamline
Material : Copper
- Bend Fitting
- Type Return
- Applicable Standard ASME/ANSI B16.22
- Size A 3/8"
- Size B 2"
- Angle 180 Degree
- End Connection Female Soldered x Female Soldered
- Material Copper
- Material Specification MSS-SP-104
- Process Wrot
- Temperature Rating 350 to 550 Deg F
- Application Industrial, Residential
- Overall Dimension 1.63" Length x 2.57" Width x 0.57" Height
- Weight 0.07 Lb
- Packaging Quantity 25 Per Inner Pack, 250 Per Master Carton
- Warranty 50 Years
- Specification Sheet
- The Production of Copper Fittings is Environmentally Safe and the Industry is the Undisputed Leader in Recycling; Over Half of the Copper Used in Manufacturing EPC Copper Fittings is from Recycled Sources; Made in USA; 50 Years Warranty
