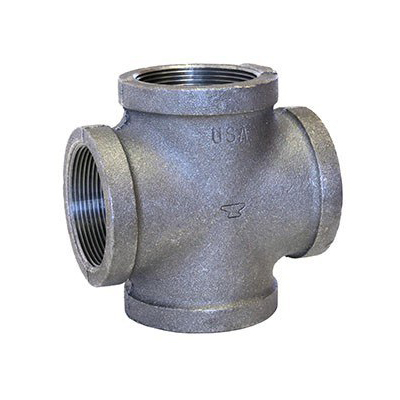

3/8" Domestic Black Malleable Iron Cross
Part #38DBMICROSS
MFG #C.BMCR
End Connection : Female Thread
Fitting Size : 3/8"
Fitting Type : Cross
Manufacturer Name : Ward
Material : Malleable Iron
- Cross Fitting
- Type Straight
- Applicable Standard ASME B16.3, ANSI/ASME B1.20.1, UL, ULC, FM, NSF 61/61G
- Nominal Size 3/8" x 3/8" x 3/8" x 3/8"
- Thickness STD
- End Connection Female Threaded x Female Threaded x Female Threaded X Female Threaded
- Material Malleable Iron
- Material Specification ASTM A197/A153/B633
- Process Cast, Machined
- Finish Black
- Pressure Rating Class 150, 300 PSI at -20 to 150 Deg F
- Temperature Rating 366 Deg F
- Application Piping, Air, Chemical
- Packaging Quantity 20 Per Inner Pack, 160 Per Master Carton
- Warranty 1 Year
- Ward Class 150 Malleable Iron Fittings are Made with the Most Sophisticated Metallurgical and Processing Controls Available; This Sophisticated Chemical Analysis is Complemented by Rigorous Quality Control of Incoming Raw Materials and Iron Processing; The Final Casting Produced by this Detailed Attention to Quality is a Close-Grained, High Strength, Non-Porous Iron; The Threads have an Accurate Form, Thread Length and Straightness to Allow them to Easily Engage Threaded Pipe; Ward Fittings have a Chamfered Opening to Allow Faster and Easier Pipe Engagement; This Feature Also Protects the Fitting Threads from Damage During Handling; 1 Year Warranty
