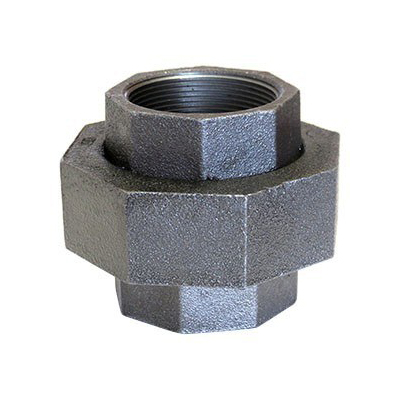

3/8" Domestic Extra Heavy Black Malleable Iron 150# Br Union
Part #38DXHBMIU
MFG #C.B300U
End Connection : Female Thread
Fitting Size : 3/8"
Fitting Type : Union
Manufacturer Name : Ward
Material : Malleable Iron
- Union Fitting
- Type Threaded End
- Applicable Standard ASME B16.39, ANSI/ASME B1.20.1, UL, ULC, FM
- Size A 3/8"
- Size B 3/8"
- Thickness XH
- End Connection Female Threaded x Female Threaded
- Material Malleable Iron
- Material Specification ASTM A197
- Process Machined
- Finish Black
- Pressure Rating Class 300, 600 PSI at -20 to 150 Deg F
- Temperature Rating -20 to 150 Deg F
- Seat Ring Material Brass
- Size 1.71" Overall Length
- Packaging Quantity 30 Per Inner Box, 180 Per Master
- Warranty 1 Year Limited
- Ward Unions are Made from Closely Grained, High Tensile Iron and are Produced under Expert Laboratory Supervision; Modern Methods of Foundry Practice and Carefully Supervised Molding are Combined to Produce Castings that are Smooth and Clean in Every Respect and Free from Imperfection; Each Opening is Chamfered Permitting Easy Assembly; Ward Unions Make Up Easily and Pull Tight for a Sealed Assembly; Rugged Strong; Suitably Chamfered; Rust Resistant Treatment; Extra Heavy Brass Seat Ring Accurately Machined to Insure Perfect Seating under Difficult Conditions; 1 Year Warranty
