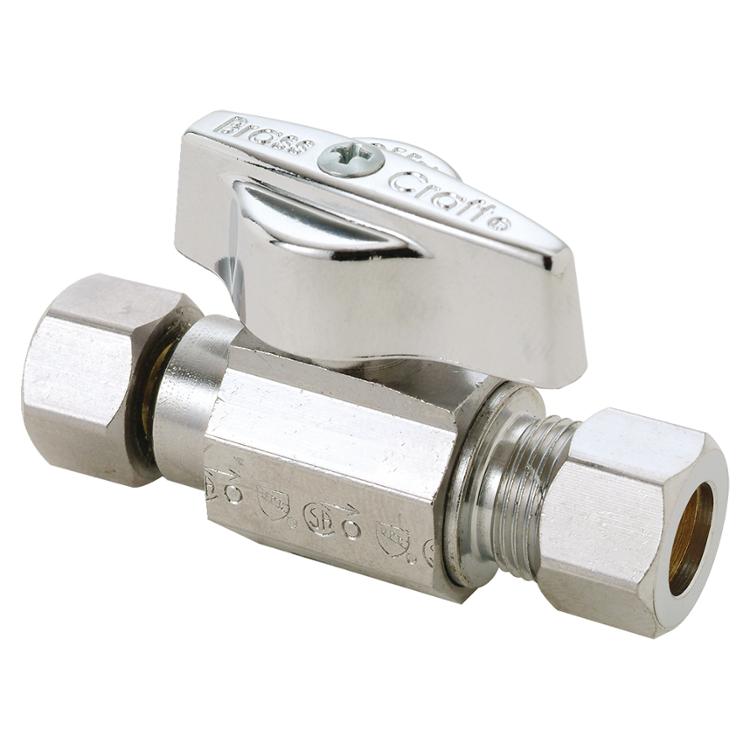

KTCR11FX C Brasscraft 3/8" OD Female Compression X 3/8" OD Compression Straight Quarter Turn Stop Chrome Plated
Part #BRAKTCR11FXC
MFG #KTCR11FX C
Manufacturer Name : Brasscraft
- Water Supply Stop Valve
- Type Straight
- Applicable Standard CSA, CUPC, IAPMO
- Actuation Type 1/4 Turn Handle
- Nominal Size 3/8"
- End Connection Female Compression x Compression
- End to End Distance 2.28"
- Body Material Chrome Plated Brass
- Seat Material PTFE
- Handle Material Die Cast Zinc
- Temperature Rating 40 to 180 Deg F
- Pressure Rating 125 PSI
- Inclusions/Features Brass Ball, O-Ring, Plated Metal Handle, Plated Stem
- Application Water
- Lead-Free
- Specification Sheet
- Lead-Free; Precision-Machined Brass Ball is Specially Engineered and Mated with PTFE Seats to Provide Smooth Operation without Freeze-Ups Even After Long Periods of Non-Use; Two High-Performance O-Rings Withstand High Temperatures and Corrosion from Harsh Water Environments; Machined One-Piece Brass Body Provides Strength, Durability and Long-Lasting Performance; Brass Stem is Assembled from the Inside Out with Two O-Rings to Ensure Safe, Reliable Performance; Plated Stem Provides Corrosion Resistance and Prevents O-Ring Damage After Long Periods of Non-Use; Exclusive, Plated Metal Handle is Designed for Durability, Corrosion Resistance and a Sleek Appearance; Easy-to-Remove Handle with Screw Attachment Helps Protect Against Accidental Stop Operation During Rough-Ins; 100 Percent Leak Tested
