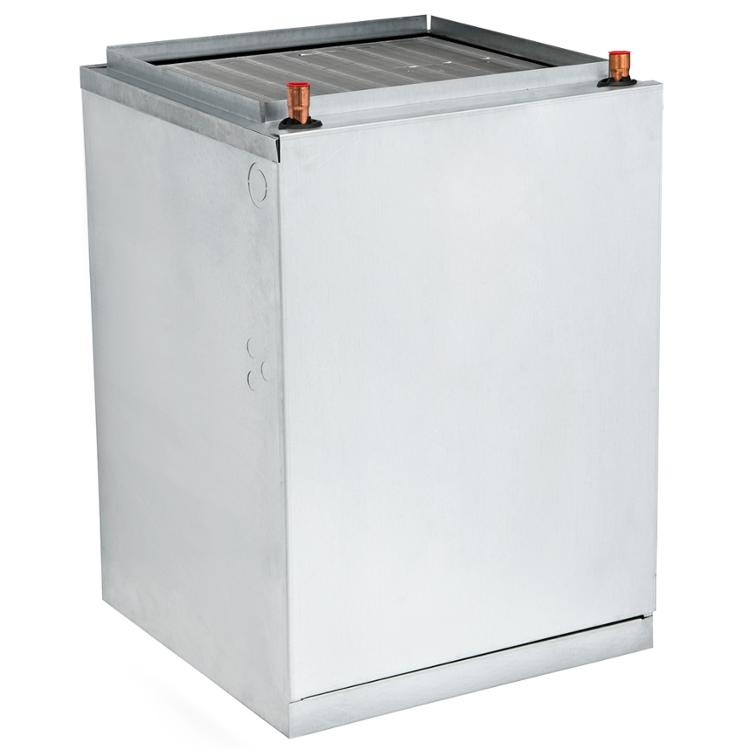

FWA30-HW First Company AquaTherm FWA-HW Series 30K BTUh Multi-Position Heat Only Air Handler
Part #FCFWA30HW
MFG #FWA30-HW
Manufacturer Name : First Company
- Air Handler
- Type Multi-Position
- Voltage Rating 120 Volt
- Current Rating 2.7 Amp
- Power Rating 1/5 HP
- Cooling Capacity 109200 BTU/HR
- Operating Temperature 120 to 180 Deg F
- Size 20" Width x 20" Depth x 27-1/2" Height
- Approval ETL (Canada and US)
- Includes Copper Tube, Aluminum Fin Coil, Factory Installed Filter, Blower Door Safety Switch, Manual Air Vent on Coil, Separate Flow Control Module
- Heating Capacity 37100 BTU/HR
- Voltage Rating 120/24 Volt (Relay/Transformer)
- Air Flow Rate 710 to 950 CFM
- Install Instructions
Specification Sheet - The FWA-AQ / FWA-HW products are compact, multiposition, cased air handlers that include hot water coils for hydronic space heating. The FWA-HW series is specifically designed for boiler loop and does not include a circulating pump. The FWAAQ series includes a factory installed circulating pump and is designed for connection to gas or oil-fired water heaters. The cabinet is made of embossed galvanized steel and is fully insulated.
