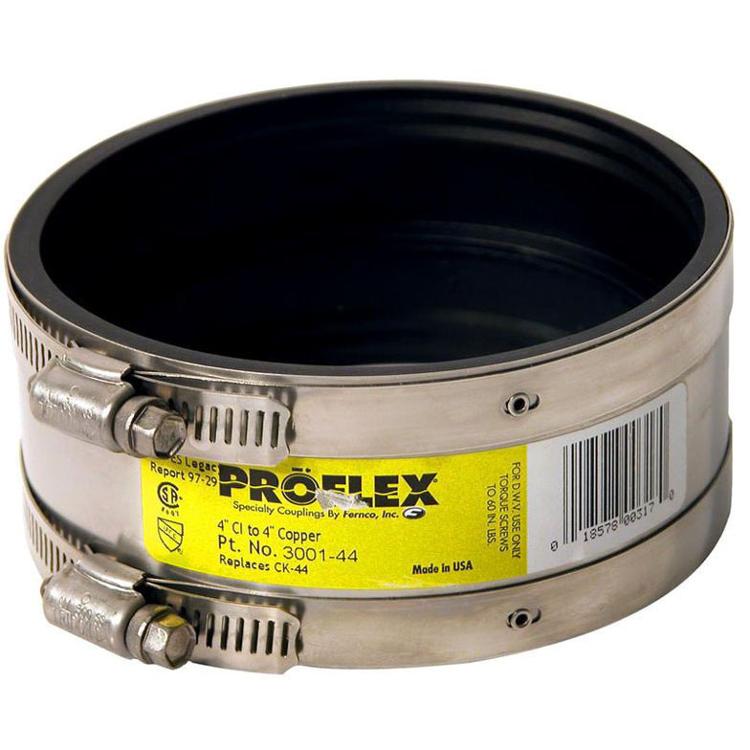

3001-44 Fernco Proflex 4" Cast Iron/Plastic X Copper Shielded Coupling
Part #FER300144
MFG #3001-44
Fitting Size : 4"
Fitting Type : Coupling
Manufacturer Name : Fernco
Material : 301 Stainless Steel
- Coupling Fitting
- Type Shielded Transition
- Applicable Standard CSA B602, UPC, ICC-ES PMG
- Size A 4"
- Size B 4"
- End Connection Cast Iron x Copper
- Material 301 Stainless Steel Band/Housing, 305 Stainless Steel Screw
- Material Specification ASTM C1460
- Pressure Rating 4.3 PSI
- Temperature Rating -30 to 180 Deg F
- Gasket Supplied Yes
- Gasket Details ASTM C564 Neoprene
- Application DWV
- Shield Assembly Material Requirements: 301 Stainless Steel Shield, 305 Stainless Steel Eyelet
- Installation Torque 60 In-Lb
- Install Instructions
Specification Sheet - Proflex is a shielded transition pipe coupling that allows you to make pipe connections that are resistant to shear forces, while creating a rigid, long-lasting pipe joint. From 3/4" to 8" pipe diameters - Proflex connects cast iron, plastic, steel, copper and tubular, drain waste and vent systems for above-ground applications.
