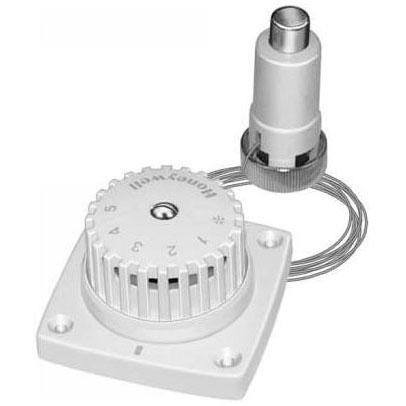

T100B1035 Honeywell Remote Mount Thermostatic Controller
Part #HONT100B1035
MFG #T100B1035
Manufacturer Name : Honeywell
- Thermostatic Radiator Valve Actuator
- Type Rotary
- Size 2-1/8" Diameter x 2-31/32" Width x 1-13/16" Height
- Operating Temperature 48 to 79 Deg F
- Application Thermostatic Radiator Valve, Convector, Heating Unit
- Inclusion/Features Remote Sensor, Set point Dial and Valve, 6-1/2' Capillary Tube, No Terminal Type
- Collar Size 1-3/16" Diameter
- Used with V100, V200 Valve
- Install Instructions
Specification Sheet - Allow Automatic Temperature Control in Two-Pipe Steam or Hot Water Systems for Free Standing Radiators, Convectors, and other Heating Unit's with Standard Capacity Requirements; Provide Comfort and Energy Savings at Affordable Prices; Continually Monitor and Adjust Room Temperature for Consistent Comfort and Relief from Under-Heating and Overheating; Valve Seat Disc, Which is Made of Resilient Material (Perm), Ensures Tight Shut-Off on Steam or Hot Water Systems; Nickel-Plated Brass Casted Body with Working Parts in Cartridge Insert for Ease of Service; Controls Include Sensor, Set Point Dial and Valve Actuator; Components may be Integral or Connected by Capillary Tubes; All Working Parts are Replaceable Using Service Tool (Mt100C1016) While Valve Remains in Service, In-Line, Under Pressure; Valves Normally Open without Control Mounted; Valves may also be Used with Mv100 Electric Zone Valve Actuator
