Part #IBCSL40399G3NG

MFG #SL40-399G3-NG

Specifications

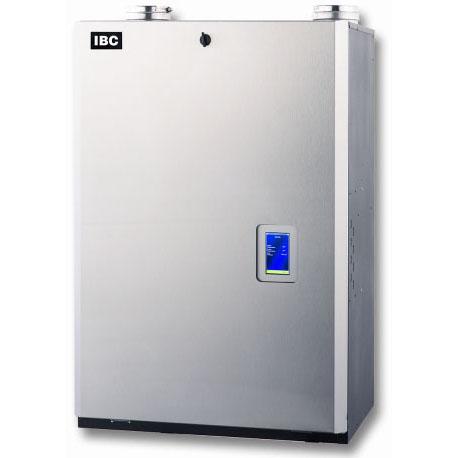

• Commercial Condensing Gas Boiler
• Type Hot Water, Modulating
• Applicable Standard ETL (Canada and US), ASME H, AHRI
• Supply Connection 1-1/2" Male Threaded
• Return Connection 1-1/2" Male Threaded
• Gas Type Natural
• Gas Connection 3/4" Female Threaded
• AGA Input Rating 40 to 399 MBH
• Net IBR Rating 38.4 to 383 MBH
• AFUE Rating 95 Percent
• Air Inlet Connection 4"
• Boiler Dimensions 27" Length x 19.5" Width x 39.9" Height
• Boiler Height Including Draft Hood 51.7"
• Boiler Material 439 Stainless Steel
• Water Content 6.66 Gallon
• Ignition Type Direct Spark
• Venting Type Direct
• Vent Size 4"
• Relief Valve Details 30 PSI 3/4" Female Threaded Relief Valve Supplied
• ASME Code Yes
• Pressure Rating 80 PSI
• Mounting Type Wall Mount
• Warranty Lifetime Limited (Heat Exchanger), 5 Year Limited (Other Parts)
• Inclusions/Features New Touch Screen V-10 Boiler Control, Wall Mounting Bracket, Condensate Trap Assembly, Outdoor Temperature Sensor, Lag Screw and Flat Washer, Installation and Operating Instructions Manual, User Manual
• Boiler Type Water
• Fuel Gas
• With Domestic Hot Water No
• Net IBR 38.4 to 383 MBH
• AFUE 95%
• Vent Type Direct
• Mount Wall
• Heat Exchanger Material Stainless Steel
• Voltage Rating 120 Volt AC at 60 Hertz
• Maximum Power Consumption 190 Watt
• Flow Rate 20 to 45 GPM
• Temperature Rating 32 to 122 Deg F
• Humidity 90 Percent Non-Condensing
• Warranty Lifetime Limited (Heat Exchanger), 5 Year Limited (Other Parts)
