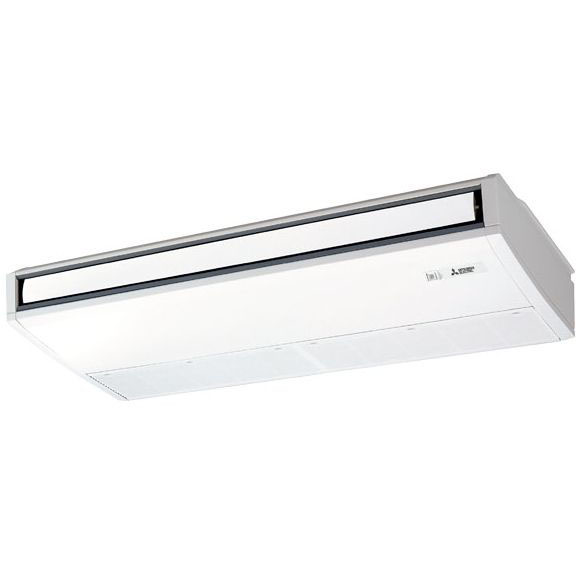

PCA-A42KA7.TH Mitsubishi 42,000 BTU Ceiling Suspended Mini Split Indoor Unit R410A
Part #MITPCAA42KA7TH
MFG #PCA-A42KA7.TH
Cooling Capacity (BTU) : 42000
Heating Capacity (BTU) : 42000
Installation Type : Ceiling Suspended
Manufacturer Name : Mitsubishi
Unit Type : Indoor
- Heat Pump Indoor Unit
- Voltage Rating 208/230 Volt AC
- Current Rating 0.97 Amp (Motor)
- Frequency Rating 60 Hertz
- Number of Phases 1
- Power Rating 4110 Watt
- Cooling Capacity 42000 BTU/HR
- Temperature Control Type Thermostat
- Operating Temperature 90 Deg F Dry, 73 Deg F Wet (Cooling), 82 Deg F Dry (Heating)
- Installation Ceiling Suspended Cassette
- Enclosure Finish White, Munsell 6.4Y 8.9/0.4
- Size 63" Width x 26-3/4" Depth x 9-1/16" Height
- Weight 86 Lb
- Approval ETL (Canada and US)
- Refrigerant Type R410A
- Heat Exchanger Type Plate Fin Coil
- Heating Capacity 45000 BTU/HR
- Airflow Rating 810/885/955/1025 CFM (Dry), 740/810/885/955 CFM (Wet)
- Energy Efficiency Ratio 17.6 SEER, 10.2 EER, 10 HSPF
- Minimum Circuit Ampacity 2 Amp
- Refrigerant Pipe Size 5/8" (Gas), 3/8" (Liquid)
- Sound Level 39 dB
- Application Larger Retail Store, Classroom and Restaurant
- Applicable Standard AHRI
- Warranty 5 Year Limited (Parts), 7 Year Limited (Compressor)
- Install Instructions
Specification Sheet - Airflow Settings for High and Low Ceiling Applications. Knock-Out for Outside-Air Intake. Auto Fan Speed Mode. Filter Status Indicator. Easy-to-Clean, Washable Filter. 5 Year Limited (Parts), 7 Year Limited (Compressor) Warranty.
