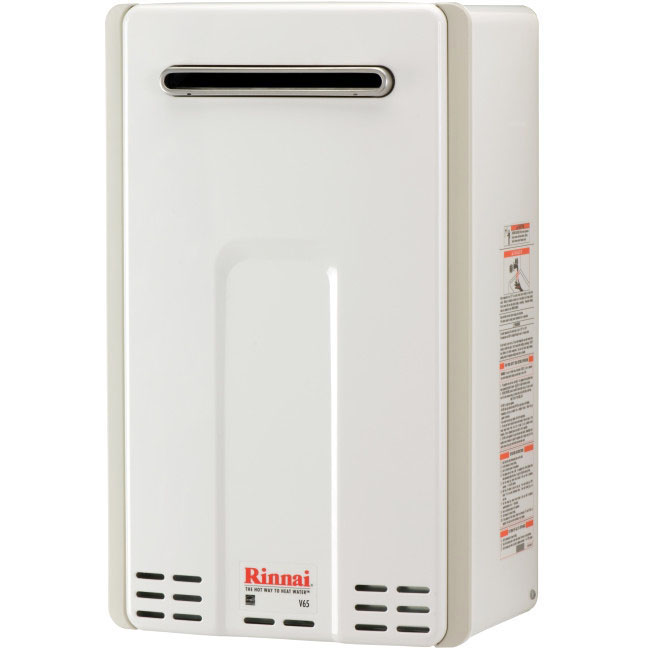

V65eN Rinnai 150,000 BTU BTU HE Series .81 Uniform Energy Factor Tankless Natural Gas Water Heater Outdoor
Part #RINV65EN
MFG #V65EN
Installation Type : Outdoor
Manufacturer Name : Rinnai
Type : Natural Gas
Warranty : 10 Years
- Tankless Water Heater
- Type Residential, Outdoor
- Inlet/Outlet Connection 3/4 Inch Threaded x 3/4 Inch Threaded
- Gas Type Natural
- Electrical Input Supply Rating 120 Volt AC at 60 Hertz, 12 Volt DC, 4 Amp, 57 Watt
- Gas Input Supply Rating 10300 to 150000 BTU/Hour
- Temperature Rating 98 to 120 Deg F
- Tank Dimensions 14.04 Inch Width x 9.27 Inch Depth x 22.95 Inch Height
- Ignition Type Direct Electronic
- Options Deluxe Controller, Bathroom Controller, Scalecutter, Additional Controller, Recess Box, Pipe Cover, EZConnect Cable, Control-R Wi-Fi Module, Wireless Accessories
- Inclusions/Features Automatic Frost Protection, Boiling Protection, Combustion Fan RPM Check, Flame Failure-Flame Rod, Over Current Glass Fuse, Remaining Flame, Thermal Fuse, 22 AWG Non-Polarized 2-Core Cable, Temperature Controlled, Water Flow Sensor, Electronic Water Control Device
- Applicable Standard ANSI Z21.10.3, CSA 4.3, AHRI, NSF, UPC, UMC
- Lead-Free
- Gas Connection 3/4 Inch Threaded
- Energy Factor 0.82
- Pressure Rating 20 to 150 PSI
- Flow Rate 6.5 GPM
- Install Instructions
Specification Sheet - Easy of Installation and Serviceability. Compact Design to Save Space. Wi-Fi Technology for Remote Monitoring, Management and Recirculation Control. Simple Gas Conversion. Complies with South Coast Air Quality Management District 14 ng/J or 20 PPM NOx Emission Levels. Ultra Low NOx. Wi-Fi and Recirculation Capable. 1/2 Inch Gas Line Compatible. Lead-Free.
