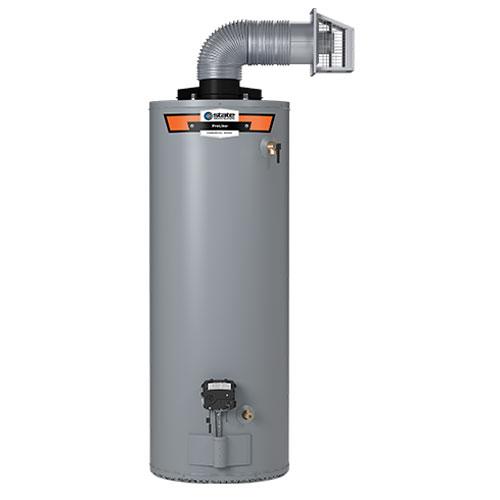

GS6-40-YBDS State 40 Gallon 6 Year Direct Vent Natural Gas Water Heater
Part #STAGS640YBDS
MFG #GS6-40-YBDS
Capacity : 40 Gallons
Manufacturer Name : State
Option : Short
Type : Natural Gas
Warranty : 6 Years
- Residential Gas Water Heater
- Type Tall
- Applicable Standard ASHRAE/IESNA 90.1, ANSI Z21.10.1, CSA 4.1, NAECA, UBC, CEC, SBCC, BOCA, HUD
- Inlet/Outlet Connection 3/4" Male Threaded x 3/4" Male Threaded
- Gas Type Natural
- Relief Valve Details T and P Relief Valve Factory Installed
- Venting Type Direct
- Draft Hood Outlet/Vent Size 6"
- Input Supply Rating 38000 BTU/HR
- Tank Dimensions 22" Diameter x 49-3/4" Height
- Tank Height Including Draft Hood 64"
- Tank Material Glass Lined
- Tank Capacity 40 Gallon
- Tank Warranty 6 Year Limited
- GPH Recovery 41 GPH at 90 Deg F
- Ignition Type Push Button Piezo
- Drain Valve Details Tamper Resistant Brass
- Insulation Details Thick CFC Free Foam
- Burner Type Green Choice Low Nox
- Energy Saver Conformance No
- Options Wire Grill Vent Cap Protector
- Inclusions/Features Intelligent Control Logic, Self-Powered Electronic Gas Valve, Diagnostics, Diffuser Dip Tube, CoreGar Anode Rod
- Energy Factor 0.6
- Warranty 6 Year Limited on Parts
- Install Instructions
Specification Sheet - The FVIR-compliant Proline Direct Vent gas water heater is to designed to draw air from outside the home, eliminating problems caused by insufficient indoor ventilation. The unit has horizontal air intake and venting on all models up to 80” from the outside wall with no electrical power needed. Featuring a 40-gallon (nominal) tank and a 38,000 BTU gas burner, the GS6 40 YBDS Direct Vent delivers a first hour rating of 64 gallons and a recovery rate of 41 gallons per hour. With an 0.60 Uniform Energy Factor. It carries a 6-year limited warranty, and meets Low NOx emission requirements.
