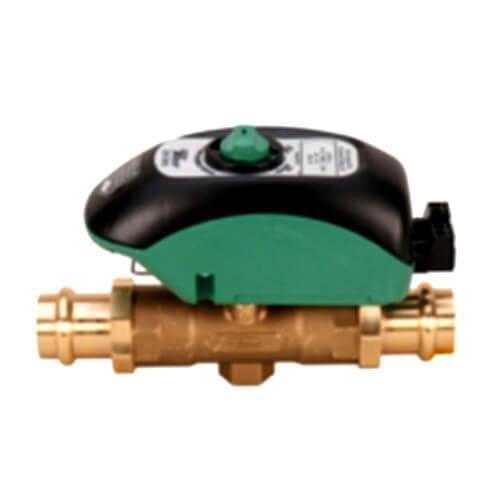

Z075P2-2 Taco 3/4" Press Connection 2-Way Zone Sentry Valve
Part #TACZ075P22
MFG #Z075P2-2
Manufacturer Name : Taco
- Zone Valve
- Type 2-Way
- Nominal Size 3/4"
- End Connection Press x Press
- Actuation Type Electronic
- Valve Position Normally Open/Close
- Body Material Forged Brass
- Valve Timing 5 Sec
- Input Supply Rating 24 Volt at 60 Hertz
- Temperature Rating 20 to 240 Deg F
- Pressure Rating 300 PSI
- Media Handled Water/Glycol
- Inclusions/Features Seat, O-Ring, Stem
- Application Baseboard, Fan Coil, Radiator, Convector, Air Handler, Heat Pump and Radiant Heating
- Power Rating 1.44 Watt
- Current Rating 0.48 Amp
- Specification Sheet
- Zone Valve Enhances the Overall Performance of Any Zone Valve System; The Unique Patented Technology in the Zone Sentry Utilizes a Microcircuit Based Logic to Control a Gear Driven Electronic Actuator Which Drives a Ball Valve Based Body Design; Uses upto 93 Percent Less Energy than Other Commonly Installed Zone Valves; Multi Function LED Assists with Troubleshooting; Bidirectional Flow; The Actuator Mounts on the Valve in Either Direction; Quick Release Actuator Mounting Clip; Manual Override Button; Positional Indicator Shows the Ball Valves Actual Position
