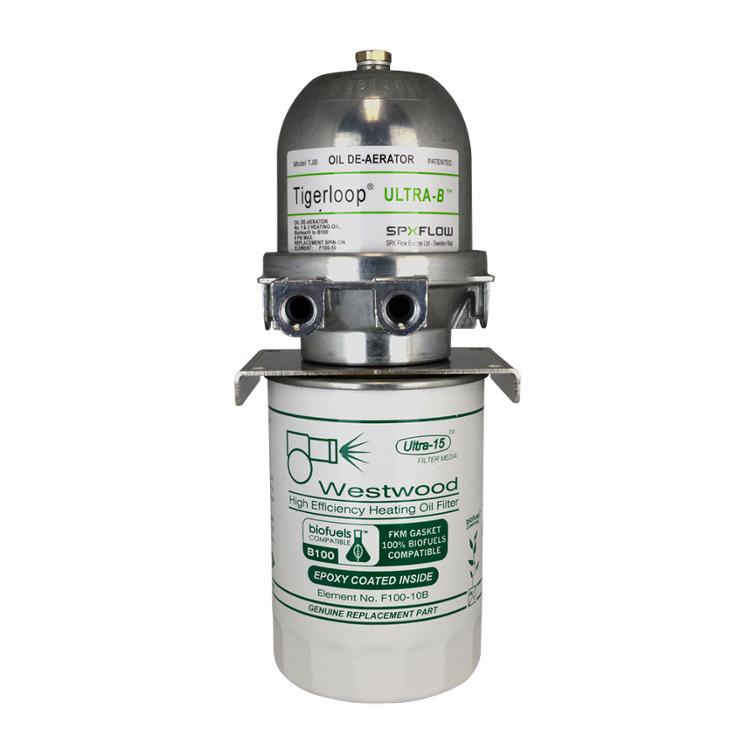

S220-9 Westwood Tigerloop ULTRA-B Oil De-Aerator B100 Rated
Part #WESS2209
MFG #S220-9
Manufacturer Name : Westwood
Type : De-Aerator
- The Tigerloop Oil De-aerator improves the efficiency and extends the life of your oil heating systems. The Tigerloop combines the benefits of a single pipe system with a two pipe system. With a Tigerloop installed, you need only to transport oil at the nozzle firing rate (i.e. 1 gph). This allows you to use one small line from the tank to the Tigerloop, whereas with a 2 pipe installation you have to provision 2 large diameter lines that will handle oil traffic at approximately 20 gph in both directions.
- Specification Sheet
- Reduces air in the system by up to 95%
- Reduces running vacuum
- Significantly reduces potential leak hazard
- Conditions oil for cleaner combustion
- Reduces lockouts, flameouts, and sputters
- Extends filter element life
- Maximum nozzle capacity of 29.0 GPH
- Temperature range of 20 Degree F to 105 Degree F
