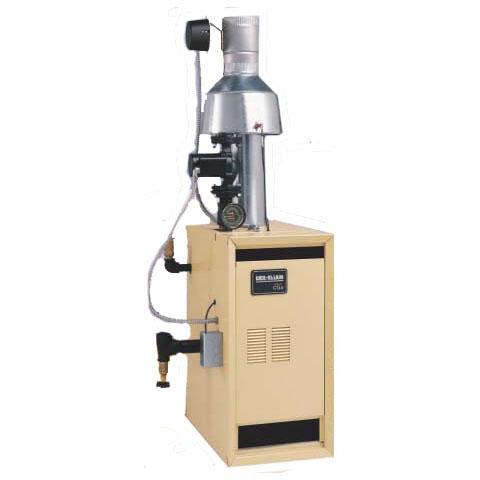

381-357-828 Weil McLain CGa-25 Series-2 84% AFUE Propane Spark Ignition Boiler With Circulator 52 Input MBH38 Net Output MBH
Part #WMCGA25PIDL
MFG #381357828
Manufacturer Name : Weil-Mclain
- Gas Fired Water Boiler
- Type Water
- Applicable Standard ASME H, CSA, DOE, AHRI
- Supply Connection 3/4"
- Return Connection 3/4"
- Gas Type LPG
- Gas Connection 1/2"
- AGA Input Rating 52 MBH
- DOE Heating Capacity 44 MBH
- Net IBR Rating 38 MBH
- AFUE Rating 84 Percent
- Air Inlet Connection 1/2" Threaded
- Boiler Dimensions 19" Length x 23-1/4" Width x 28-3/8" Height
- Boiler Height Including Draft Hood 45-3/8"
- Boiler Material Cast Iron
- Water Content 1.5 Gallon
- Ignition Type Intermittent Electronic
- Burner Type Stainless Steel
- Venting Type Direct, Vertical
- Vent Size 4" Diameter x 20' Length
- Relief Valve Details 30 PSI ASME Relief Valve
- Pressure Rating 50 PSI
- Mounting Type Floor Mount
- Warranty 20 Year (Heat Exchanger), 2 Year (Parts)
- Inclusions/Features 2-Piece Top Jacket Panel, Insulated Extended Steel Jacket, Radiation Plate, Automatic Vent Damper, Inducer Assembly, Combination Gas Valve, Spill Switch, 40 VA Transformer, Electrical Junction Box, Thermal Fuse Element, Temperature Control, Pressure-Temperature Gauge, Drain Valve, AL-29-4C Starter, Taco 007 Circulator, Expansion Tank Package, Indirect-Fired Water Heater, Pool Heater, Baseboard Unit
- Application Residential, Light Commercial, Multiple Boilers, Indirect Fired Water Heating, Radiant Heating
- Install Instructions
Specification Sheet - High Efficiency; Compact Design Saves Valuable Living Space, Stainless Steel Burners for Quieter Ignition, Longer Life and Improved Combustion, Easily Accessible Controls, Vertical Flueways and Top Cleaning for Easy and Quick Servicing; 20 Year Heat Exchanger, 2 Year Parts Warranty
