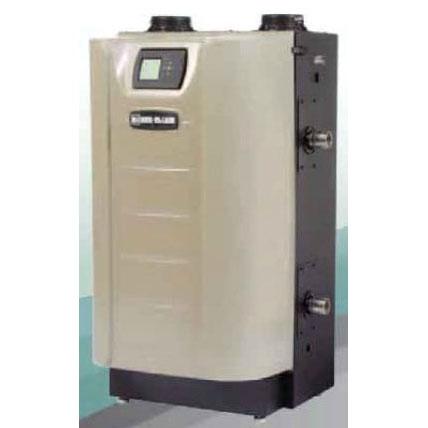

383-900-002 Weil McLain Evergreen Pro EVG-399 Series-1 96.5% AFUE Natural Gas/Propane Floor Condensing Boiler With Circulator 399 Input MBH 333 Net Output MBH
Part #WMEVG399
MFG #383900002
Manufacturer Name : Weil-Mclain
- Residential Condensing Gas Boiler
- Type Hot Water
- Applicable Standard CSA (Canada and US), ASME H, AHRI, DOE
- Supply Connection 1-1/2" Male Threaded
- Return Connection 1-1/2" Male Threaded
- Gas Type Natural/Propane
- Gas Connection 3/4" Male Threaded
- AGA Input Rating 399 MBH
- DOE Heating Capacity 383 MBH
- Net IBR Rating 333 MBH
- AFUE Rating 96.5 Percent
- Air Inlet Connection 4"
- Boiler Dimensions 26-1/2" Length x 22-3/4" Width x 43-1/16" Height
- Boiler Height Including Draft Hood 45"
- Boiler Material Stainless Steel (Heat Exchanger)
- Water Content 6.7 Gallon
- Ignition Type Spark
- Burner Type High Grade Stainless Steel
- Venting Type Direct
- Vent Size 4"
- Relief Valve Details 30 PSI Relief Valve Supplied
- GPH Recovery 7.2 GPM at 40 Deg F
- Pressure Rating 80 PSIG
- Mounting Type Floor Standing/Wall Mount
- Warranty 12 Year Limited (Heat Exchanger), 5 Year Limited (Other Parts)
- Options Wall Mount Kit, Concentric Vent Kit, Condensate Neutralizer Kit, Sidewall Vent/Air Termination Kit, Maintenance Kit
- Inclusions/Features Non-Metallic Heat Exchanger Base, 10 to 1 Turndown Ratio, Negative Regulated Combustion, Liquid Propane Conversion Kit, Water Treatment- Inhibitor and Test Kit, Low Water Cut-Off, Taco 0013 Circulator Pump
- Boiler Type Water
- Fuel Gas
- Net IBR 333 MBH
- AFUE 96.5%
- Vent Type Direct Vent
- Mount Floor/Wall
- Heat Exchanger Material Stainless Steel
- Warranty 12 Year Limited (Heat Exchanger), 5 Year Limited (Other Parts)
- Install Instructions
Specification Sheet - High Efficiency;Stainless Steel Fire Tube Heat Exchanger with Non-Metallic Base;Floor Standing Boiler with Optional Wall Mount Kit;Modulating Condensing Boiler with 10:1 Turn Down;4-Pump/Auxiliary Outputs (Example 1 Boiler Loop Pump + 3 Zone Pump) Up to 8 Multiple Boiler Control with Lead/Lag Rotation;Each Input Can be Assigned to a Priority (Up to 3 Priorities);Multiple Inputs Can be Assigned One Priority (Zone Based Control);All Lag Boiler Inputs and Output Can be Used;0 to 10 Volt Input (Modulation or Setpoint);Configurable Auxiliary Input/Output System;12 Year Limited (Heat Exchanger), 5 Year Limited (Other Parts) Warranty;Energy Star Rated
