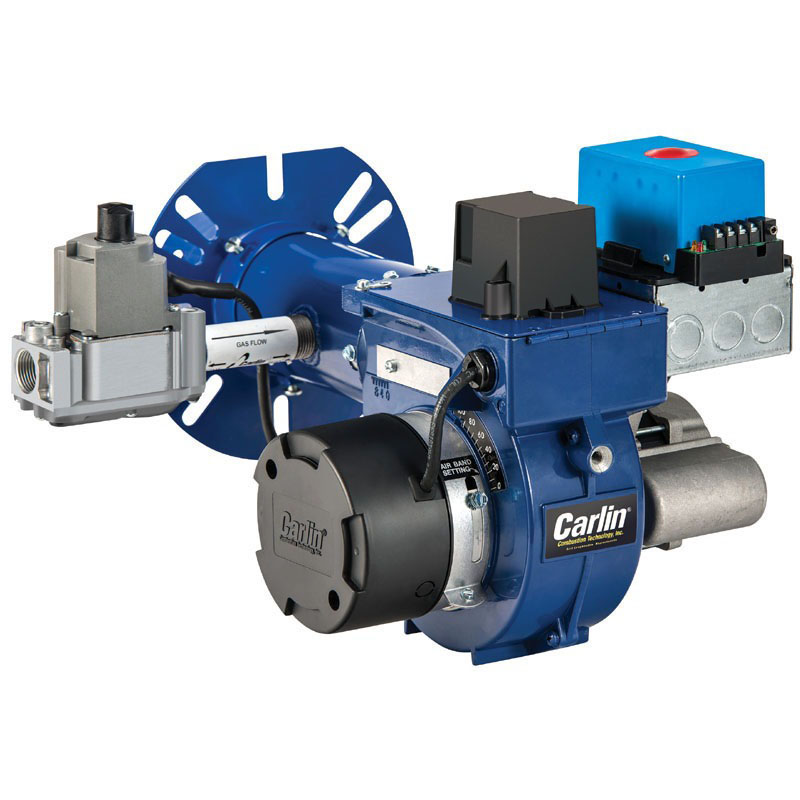

9859210FRU Carlin EZ-Gas Pro Natural Gas/LP Burner
Part #CAR9859210FRU
MFG #9859210FRU
Manufacturer Name : Carlin
- Gas Burner
- Fuel Type Natural Gas, Propane
- Ignition Source Spark, Flame Rod Rectification
- Mounting Bracket Type Adjustable
- Fitting Size 3-1/2" Diameter x 10" Length
- Orifice Size 11/32" (Natural Gas), 9/32" (Propane)
- Application Interrupted, Residential Gas Burning
- Approval UL (Canada and US), ANSI Z21.17, CSA 2.7
- Air Tube Size 3-1/2" Diameter x 10" Length
- Input Power Rating 225 MBH
- Manifold Pressure Rating 3.5 Water Column
- Supply Pressure Rating 5 to 14" Water Column
- Control Type Microprocessor
- Motor Power Rating 1/2 HP
- Speed Rating 3450 RPM
- Install Instructions
- As a Natural Gas Conversion Burner, This Model is Available With/without a Burner Cover; This Burner Converts Existing Oil-Fired Boilers, Furnaces and Water Heaters to Natural Gas or Propane at a Fraction of the Cost of Replacing the Appliance; This Natural Gas Converter Comes Factory Packed with Combustion Control and Gas Fuel Train; Unlike other Conversion Burners, it Does Not Require a Refractory Liner Fires With/without a Combustion Chamber; Proven in Extensive Boiler and Furnace Testing; Pre-Purge and Post-Purge; Serviceman Reset Protection; Latch-Up After Three Consecutive Lockouts; Interrupted Duty Ignition; Recycle on Flame Failure; Limited Warranty
