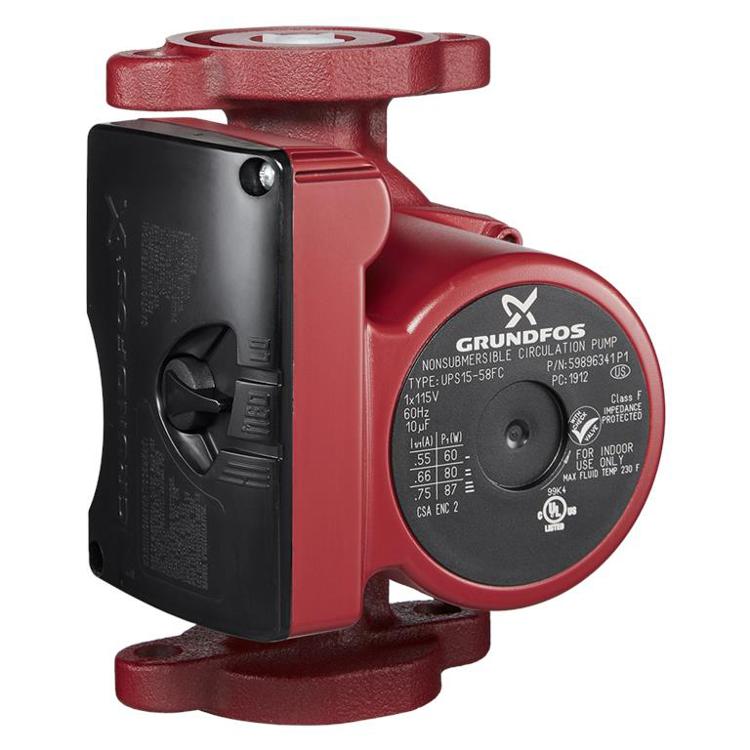

59896341 Grundfos UPS15-58FC Cast Iron Super Brute Circulator Pump 115V 1/25 HP 2450 RPM 3-Speed With Integral Check Valve
Part #GRUUPS1558FC
MFG #59896341
Manufacturer Name : Grundfos
- Circulator Pump
- Type Wet Rotor, 3-Speed, In-Line
- Applicable Standard ANSI/NSF 61, CSA, CUL, ETL, UL, UL (Canada and US)
- End Connection GF 15/26 Flanged x GF 15/26 Flanged
- Overall Dimensions 5.25" Length x 6.5" Height
- Flow Rate 0 to 17 GPM
- Discharge Head 58 Decimeter
- Casing Material ASTM Grade 30 B EN-JL1030 Cast Iron
- Shaft Material Aluminum Oxide Ceramic
- Impeller Material Polyethersulfone Composite
- Impeller Design Closed
- Warranty 36 Month Limited from Date of Manufacture
- Shaft Seal Details Ceramic Face
- Power Rating 1/25 HP
- Input Supply Rating 87 Watt at 115 Volt 60 Hertz 1 Phase 0.75 Amp
- Temperature Rating 36 to 230 Deg F Liquid for Closed System
- Pressure Rating 145 PSI
- Motor Type Permanent Split Capacitor, 2 Pole
- Options Cast Iron Flange with Line Cord
- Inclusions/Features Whisper Quiet Operation, Built-In Timer, Line-Cord and Aquastat, Unique Wet Rotor Design, Check Valve, Saves Upto 12000 Gallons
- Application Boiler/Hydronic Heating, Ground-Source Heat Pumps, Radiant Floor Heating, Hydronic and Fan-Coil Heating, Solar Heating, Heat Recovery/Heat Pumps, Residential or Light Commercial
- Material Aluminum Stator Housing, EPDM Rubber O-Ring, Stainless Steel Rotor Can
- Install Instructions
- UPS Pumps Constitute a Complete Range of 3-Speed Circulator Pumps, Available Both in 50/60 Hertz: The Pumps Can be Used in Both Open and Closed Systems; UPS Pumps are of the Canned-Rotor Type, i.e. Pump and Motor form an Integral Unit without a Shaft Seal and with Only Two Gaskets for Sealing: The Bearings are Lubricated by the Pumped Liquid; UPS Pumps are Designed for Circulation of Liquids in Heating and Air-Conditioning Systems; Pumps with Bronze or Stainless Steel Housings are also Suitable for Use in Hot-Water Service Systems; Examples of Typical Applications are one- and Two-Pipe Heating Systems; Main Pumps; Zone Pumps; Boiler Shunt Pumps; Pumps for Heating Surfaces; Calorifiers; Underfloor Heating Systems; Solar Heating Systems; Heat Pump Systems; Geothermal Heating Systems; Heat Recovery Systems; Two-Pipe Air-Conditioning Systems; Pumps for Refrigeration Units; Maintenance-Free; Low Noise; Low Energy; Complete Range; Available with Corrosion-Resistant Stainless Steel or Bronze Pump Housing; Wide Range of Accessories; 36 Month Limited from Date of Manufacture Warranty
