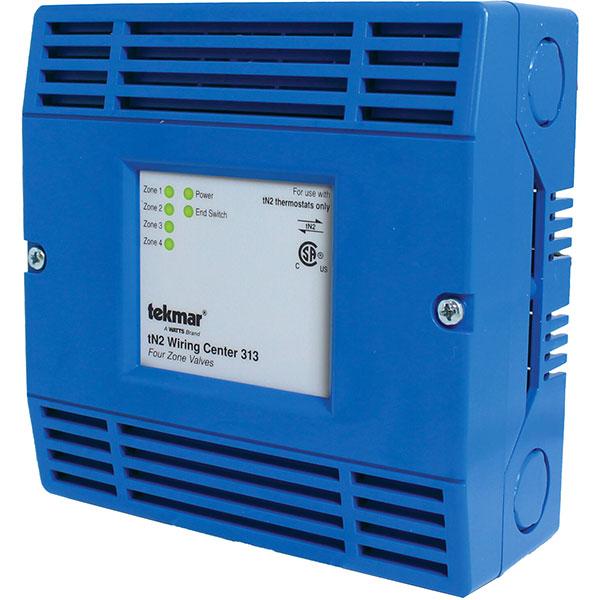

313 Tekmar tN2 Wiring Center Four Zone Valves
Part #TEK313
MFG #313
Manufacturer Name : Tekmar
- The tekmarNet 2 Wiring Center 313 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to remote manifolds for radiant heating. This product provides power for up to four tekmarNet 2 thermostats, and up to four 24 V (ac) zones valve outputs, as well as providing an end switch closure to enable an external device such as a boiler. A line voltage output on the back of the control can operate a zone group pump if required. An outdoor sensor input is included and provides the outdoor air temperature reading on each thermostat when an optional outdoor sensor is installed.
- Install Instructions
Specification Sheet - CSA C US certified for use in USA and Canada
- Powered zone group pump output
- External diagnostic LEDs
- tN4 expansion terminals
- Supports two-stage tekmarNet 2 thermostats
- Outdoor sensor input
- Only requires 2 wires per zone, four 24 V (ac) powered zone outputs
- For use with tekmarNet 2 thermostats only
- Isolated end switch
